Tensile & Yield Strength of ASTM A192 Tube in ASME Codes

August 8, 2020

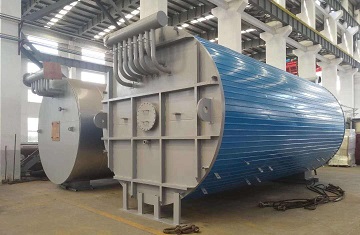

A thermal oil boiler

A thermal oil boiler with ASTM A192 tube coils deployed inside, supplied to Philippines.

The tensile strength and yield strength of the ASTM A192/ ASME SA-192 tube are 325 MPa and 180 MPa at room temperature, respectively. The Part D of ASME Boiler & Pressure Vessel Code Section II has stipulated tensile strengths and yield strengths at elevated temperatures. These values are only used for design calculation purpose.

Tensile Strengths of ASTM A192 at Elevated Temperatures

Temp.Su
40324
100324
150324
200324
250324
300324
325324
350324
375324
400 319
425299
450275
475250
500223
525198
*Su & Temp.: tensile strength, MPa, for metal temperature, °C, not exceeding. All values are extracted from Table U.

Yield Strengths of ASTM A192 at Elevated Temperatures

Temp.Sy
40179
65 168
100163
125 161
150158
175 156
200154
225 151
250148
275144
300140
325136
350132
375128
400124
425120
450117
475114
500111
525109
*Sy & Temp.: yield strength, MPa, for metal temperature, °C, not exceeding. All values are extracted from Table Y-1.
