Tensile & Yield Strengths of ASTM A179 Tubes

August 4, 2020

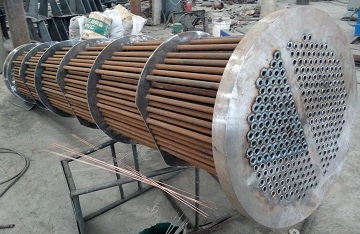

Heat exchanger made of ASTM A179 tubes

A tubular heat exchanger, the tube pass of which is constructed by ASTM A179 seamless tubes.

ASME BPVC Section II Part D has listed the tensile strength values and yield strength values of ASTM A179 seamless tubes at different temperatures in Table U and Table Y-1, respectively. These values are to be used in design calculations according to the rules of the construction codes.

Tensile Strengths of ASTM A179 Tubes at Temperatures

Temp.Su
40324
100324
150324
200324
250324
300324
325324
350324
375324
400319
425299
450275
475250
500223
525198
*Temp.: metal temperature, °C, not exceeding; *Su: tensile strength, MPa.

Yield Strength of ASTM A179 Tubes at Temperatures

Temp.Sy
40179
65168
100163
125161
150158
175156
200154
225151
250148
275144
300140
325136
350132
375128
400124
425120
450117
475114
500111
525109
*Temp.: metal temperature, °C, not exceeding; *Sy: yield strength, MPa.
