ASTM A269 Tubing Used for ASME B31.3

November 19, 2020

For grades of austenitic stainless steel tubing, made from ASTM A269 TP304, TP304L, TP316 or TP316L, can be used for process piping applications designed according to ASME B31.3. In other words, grades TP304, TP304L, TP316, TP316L are the listed materials of Code ASME B31.3: TP304 – UNS S30400, TP304L – UNS S30403, TP316 – UNS S31600, TP316L – UNS S31603. The P number of all the four grades are 8 and the tubing can be used at the minimum design temperature of -425°F [-254°C].

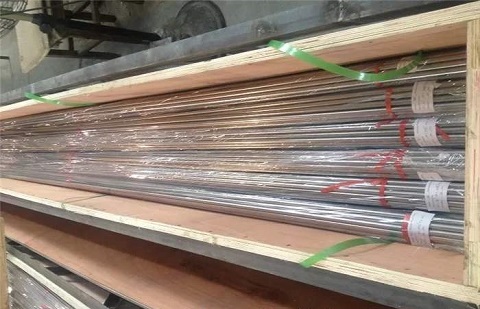

Stainless steel tubing in straight-cut length and plywood case packaged for ASME B31.3 process piping, ASTM A269 TP316/TP316L dual certified, supplied to Melbourne, Australia.

Basic allowable stresses in tension for grades TP304, TP304L, TP316, TP316L are listed in Table A-1 (US Customary units) and A-1M (SI Unit) of ASME B31.3, respectively. The values are extracted from the Code and presented in the tables below. Allowable stresses in shear shall be 0.8 times the basic allowable stresses in tension; allowable stresses in compression shall be no greater than the basic allowable stresses in tension.

Basic Allowable Stresses in Tension for ASTM A269 TP304L & TP316L

Temp. °F	S_304L ksi	S_316L ksi
min.~100	16.7	16.7
200	16.7	16.7
300	16.7	16.7
400	15.8	15.7
500	14.7	14.8
600	14.0	14.0
650	13.7	13.7
700	13.5	13.5
750	13.3	13.2
800	13.0	12.9
850	12.8	12.7
900	12.6	12.4
950	12.3	12.1
1000	12.0	11.8
1050	6.3	11.6
1100	5.1	11.4
1150	4.0	8.8
1200	3.2	6.4
1250	2.6	4.7
1300	2.1	3.5
1350	1.7	2.5
1400	1.1	1.8
1450	1.0	1.3
1500	0.9	1.0

*S_304L & *S_316L: basic allowable stresses for TP304L & TP316L at metal temperatures. The minimum tensile and yield strengths at room temperature are 70 ksi and 25 ksi, respectively.

Basic Allowable Stresses in Tension for ASTM A269 TP304 & TP316

Temp. °F	S₃₀₄ ksi	S₃₁₆ ksi
min.~100	20.0	20.0
200	20.0	20.0
300	20.0	20.0
400	18.6	19.3
500	17.5	18.0
600	16.6	17.0
650	16.2	16.6
700	15.8	16.3
750	15.5	16.1
800	15.2	15.9
850	14.9	15.7
900	14.6	15.6
950	14.3	15.4
1000	14.0	15.3
1050	12.4	15.1
1100	9.8	12.4
1150	7.7	9.8
1200	6.1	7.4
1250	4.7	5.5
1300	3.7	4.1
1350	2.9	3.1
1400	2.3	2.3
1450	1.8	1.7
1500	1.4	1.3

*S₃₀₄ & *S₃₁₆: basic allowable stresses for TP304 & TP316 at metal temperatures. The minimum tensile and yield strengths at room temperature are 75 ksi and 35 ksi, respectively.
