Categories
- Pipe & Tube (18)
- Flange & Fitting (97)
- Fastener & Gasket (12)
- Valve & Pump (18)
- Base Material (10)
- Equipment (6)
- Application (25)
- Technical (107)

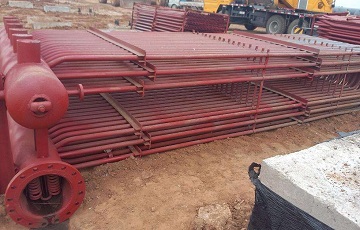

A superheater made of ASTM A192 carbon steel seamless tubes, at a job site of a chemical plant in Lithuania.
ASTM A192, identical with ASME SA-192, is the standard specification covering minimum-wall-thickness seamless carbon steel boiler and superheater tubes for high pressure service. The tubing sizes and thicknesses usually furnished to ASTM A192 are 1/2″ to 7″ [12.7 mm to 177.8 mm] outside diameter and 0.085″ to 1.000″ [2.2 mm to 25.4 mm], inclusive, in minimum wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.

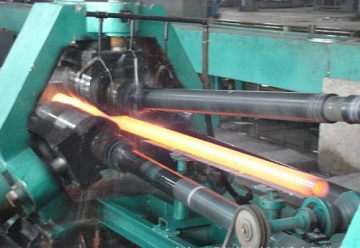

A glance at the hot-rolling line of Baotou Steel, one of China’s prominent state-owned pipe mills. A Φ50.8 mm tube made of ASTM A192 steel is fed through the triple-roller rolling facility.
The ASTM A192 boiler tubes/ superheater tubes shall be made by the seamless process and shall be either hot-finished or cold-finished. Hot-finished tubes need not be heat treated. Cold-finished tube shall be heat treated after the final cold-finishing at a temperature of 1200°F [650°C] or higher.
Element | Content, % |
---|---|
C | 0.06~0.18 |
Mn | 0.27~0.63 |
P | ≤0.035 |
S | ≤0.035 |
Si | ≤0.25 |
Mechanical Property Requirements | |
---|---|
T.S. min ksi [MPa] | 47 [325] |
Y.S. min ksi [MPa] | 26 [180] |
El. in 2" min, % | 35 |
Brinell Hardness max. HBW | 137 |
Rockwell Hardness, max. HRBW | 77 |
Flattening test, flaring test, hardness test, hydrostatic test, and tension test.
