ASME B18.2.1 Hex Flange Screw

September 27, 2019

Technical Drawing

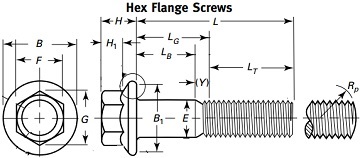

Drawing for the hex flange screw made in accordance with ASME B18.2.1.

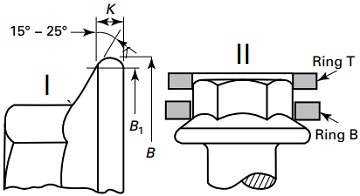

Type I: head details & Type II: head gaging for ASME B18.2.1 hex flange screw.

The ASME B18.2.1 hex flange screw is constructed in three sections including a hexagonal head, a disc-like flange, and a threaded rod. It has same tightening function as that of a common hex cap screw plus a washer. Due to the extensive contact surface between the flange and the work piece, the better tightening can be assured. The bottom surface of the flange may be flat and smooth, or corrugated.

Dimensions & Weights

Size	E		F
Size	Max.	Min.	Max.	Min.
1/4"	0.2500	0.2450	0.3750	0.367
5/16"	0.3125	0.3065	0.5000	0.489
3/8"	0.3750	0.3690	0.5625	0.551
7/16"	0.4375	0.4305	0.6250	0.612
1/2"	0.5000	0.4930	0.7500	0.736
9/16"	0.5625	0.5545	0.8125	0.798
5/8"	0.6250	0.6170	0.9375	0.922
3/4"	0.7500	0.7410	1.1250	1.100

*All dimensions are in inch units.

Size	G		B	H
Size	Max.	Min.	B	H
1/4"	0.433	0.409	0.56	0.28
5/16"	0.577	0.548	0.68	0.32
3/8"	0.650	0.618	0.81	0.39
7/16"	0.722	0.685	0.93	0.46
1/2"	0.866	0.825	1.07	0.51
9/16"	0.938	0.895	1.19	0.57
5/8"	1.083	1.034	1.33	0.62
3/4"	1.299	1.234	1.59	0.73

*All dimensions are in inch units.

ASME B18.2.1 Nine Types of Bolts & Screws
Square Head Bolt	Hex Bolt	Heavy Hex Bolt
Askew Head Bolt	Hex Cap Screw	Heavy Hex Screw
Hex Flange Screw	Lobed Head Screw	Lag Screw

Click to view the dimensions of ASME B18.2.1 bolt and screw. Please contact our technical teams for the unit weight of each screw.
