ASME B16.48 Spade Flange | Paddle Blank | Female RTJ

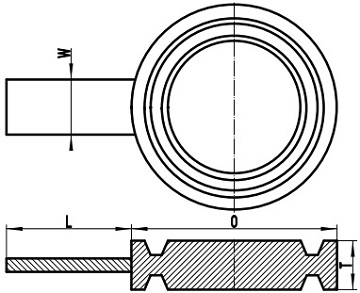

Technical Drawing

Dimensions & Weights

NPS	O	T	W	Weight
1	64	19.1	51	0.13
1-1/4	73	19.1	51	0.29
1-1/2	83	19.1	57	0.38
2	102	19.1	57	0.57
2-1/2	121	22.4	57	0.69
3	133	22.4	57	1.00
3-1/2	154	22.4	64	1.86
4	172	22.4	64	2.21
5	194	25.4	70	2.87
6	219	25.4	83	4.56
8	273	28.4	95	7.19
10	330	31.8	102	12.69
12	406	35.1	121	21.57
14	426	35.1	127	26.14
16	483	38.1	127	39.08
18	546	41.1	127	50.60
20	597	41.1	127	68.02
24	711	47.8	152	105.68

* Basic dimensions and weight for ASME B16.48 Class 150 paddle blanks  (spade flanges) with female ring-joint facing (F/RTJ).

NPS	O	T	W	Weight
1/2	51	15.7	38	0.13
3/4	64	19.1	45	0.20
1	70	19.1	51	0.25
1-1/4	79	22.4	51	0.33
1-1/2	90	22.4	57	0.44
2	108	25.4	57	0.86
2-1/2	127	28.4	57	1.17
3	146	28.4	57	1.58
3-1/2	159	28.4	64	2.41
4	175	31.8	64	2.91
5	210	35.1	70	4.97
6	241	35.1	83	6.70
8	302	41.1	95	13.87
10	356	44.5	102	21.62
12	413	50.8	121	32.60
14	457	53.8	127	47.56
16	508	57.2	127	69.49
18	575	60.5	127	91.87
20	635	69.9	127	118.79
24	749	79.2	152	189.29

* Basic dimensions and weight for ASME B16.48 Class 300 paddle blanks  (spade flanges) with female ring-joint facing (F/RTJ).

NPS	O	T	W	Weight
1/2	51	19.1	38	0.20
3/4	64	22.4	45	0.30
1	70	22.4	51	0.41
1-1/4	79	22.4	51	0.71
1-1/2	90	22.4	57	0.94
2	108	28.4	57	1.34
2-1/2	127	31.8	57	2.11
3	146	31.8	57	2.89
3-1/2	159	35.1	64	3.93
4	175	35.1	64	5.35
5	210	38.1	70	9.16
6	241	44.5	83	12.92
8	302	50.8	95	22.79
10	356	57.2	102	41.07
12	413	63.5	121	61.63
14	457	66.5	127	76.45
16	508	73.2	127	112.59
18	575	79.2	127	141.07
20	635	88.9	127	200.39
24	749	104.6	152	306.58

* Basic dimensions and weight for ASME B16.48 Class 600 paddle blanks  (spade flanges) with female ring-joint facing (F/RTJ).

NPS	O	T	W	Weight
1/2	61	22.4	38	0.24
3/4	67	22.4	45	0.33
1	71	22.4	51	0.44
1-1/4	81	25.4	51	0.77
1-1/2	92	25.4	64	0.98
2	124	31.8	51	2.17
2-1/2	137	35.1	67	2.88
3	155	35.1	67	3.83
4	181	41.1	73	6.67
5	216	44.5	73	10.73
6	241	47.8	73	16.07
8	308	57.2	80	32.25
10	362	63.5	121	53.86
12	419	73.2	121	80.95
14	467	82.6	121	99.17
16	524	91.9	127	134.89
18	594	101.6	133	181.63
20	648	111.3	127	237.33
24	772	133.4	140	405.72

* Basic dimensions and weight for ASME B16.48 Class 900 paddle blanks  (spade flanges) with female ring-joint facing (F/RTJ).

NPS	O	T	W	Weight
1/2	61	22.4	38	0.24
3/4	67	25.4	45	0.42
1	71	25.4	54	0.57
1-1/4	81	25.4	54	0.78
1-1/2	92	28.4	57	1.17
2	124	35.1	54	2.19
2-1/2	137	38.1	57	3.37
3	168	44.5	73	4.72
4	194	47.8	76	7.72
5	229	53.8	76	13.48
6	248	60.5	79	20.11
8	318	73.2	86	35.75
10	371	82.5	133	64.87
12	438	101.6	133	108.10
14	489	111.3	140	144.51
16	546	124.0	146	202.24
18	613	133.0	152	274.68
20	673	142.7	165	347.90
24	794	168.1	178	573.68

* Basic dimensions and weight for ASME B16.48 Class 1500 paddle blanks  (spade flanges) with female ring-joint facing (F/RTJ).

NPS	O	T	W	Weight
1/2	65	25.4	38	0.37
3/4	73	28.4	45	0.47
1	83	28.4	54	0.65
1-1/4	102	35.1	54	1.16
1-1/2	114	38.1	61	1.72
2	133	41.1	57	2.63
2-1/2	149	47.8	61	4.04
3	168	50.8	76	6.40
4	203	63.5	83	11.25
5	241	73.2	89	18.87
6	279	82.6	95	28.04
8	340	98.6	95	53.35
10	425	117.3	91	97.31
12	495	133.4	152	152.30

* Basic dimensions and weight for ASME B16.48 Class 2500 paddle blanks (spade flanges) with female ring-joint facing (F/RTJ).
